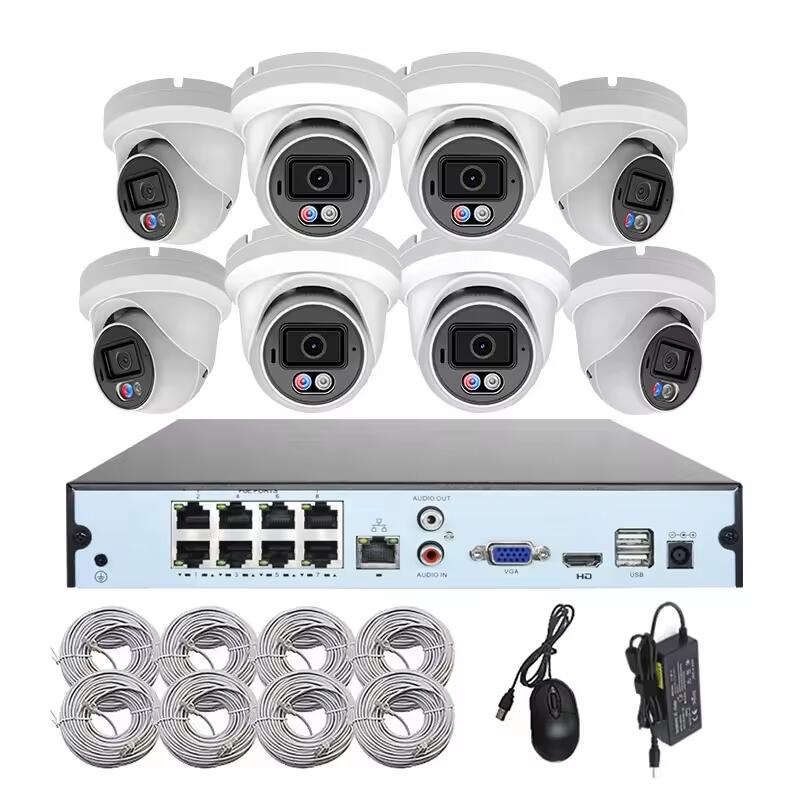

POE NVR KITS 4K 8CH PoE NVR Kit Two Way Audio Full Color IP66 8pcs Active Deterrence Outdoor Indoor 8MP Security Camera System
POE NVR KITS 4K 8CH PoE NVR Kit Two Way Audio Full Color IP66 8pcs Active Deterrence Outdoor Indoor 8MP Security Camera System
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Model
|

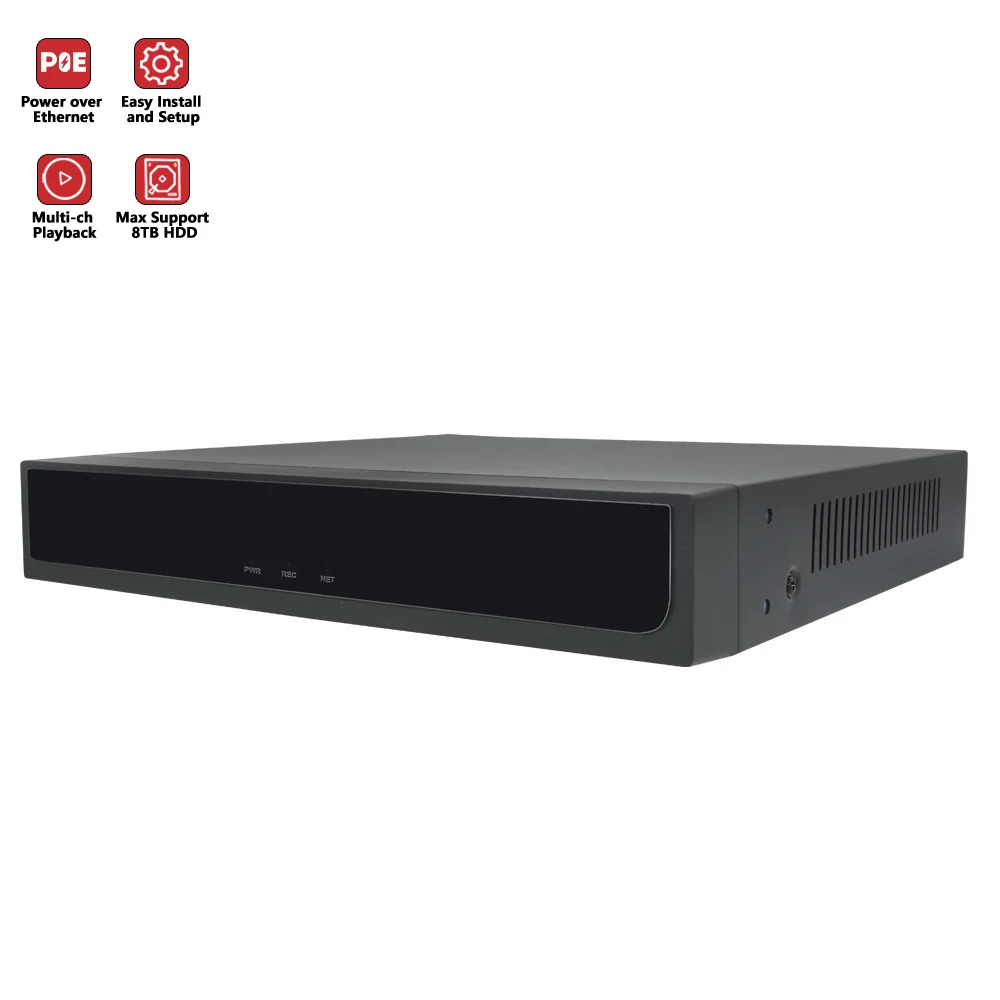

NVR301-08LS3-P8
|
|
|
Video/Audio Input
|
||
|
IP Video Input
|
8-ch
|
|
|
Network
|
||
|
Incoming Bandwidth
|
64Mbps
|
|
|
Outgoing Bandwidth
|
48Mbps
|
|
|
Remote Users
|
128
|
|
|
Protocols
|
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
|
|
|
Video/Audio Output
|
||
|
HDMI/VGA Output
|
HDMI:
|
|
|
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
||
|
VGA:
|
||
|
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
||
|
Recording Resolution
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
|
Audio Output
|
1-ch, RCA
|
|
|
Audio Compression
|
G.711A, G.711U
|
|
|
Synchronous Playback
|
8-ch
|
|
|
Live view display
|
1/4/6/8/9
|
|
|
Corridor Mode Screen
|
3/4/5/7/9
|
|
|
Snapshot
|
||
|
FTP/Schedule/Event Snapshot
|
1-ch snapshot, up to D1 resolution
|
|
|
Decoding
|
||
|
Decoding format
|
Ultra 265/H.265/H.264
|
|
|
Live view/Playback
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
|
Capability
|
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
|
|
|
Hard Disk
|
||
|
SATA
|
1 SATA interface
|
|
|
Capacity
|
up to 10TB for each disk
|
|
|
Smart
|
||
|
VCA Search
|
Behavior Search
|
|
|
Smart Intrusion Prevention (SIP) by Camera
|
4-ch(supports channel 1-4; Alarm only, no image)
|
|
|
General Alarm
|
||
|
General Alarm
|
Motion, Tampering, Video Loss, Alarm Input
|
|
|
Alert Alarm
|
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full,
|
|
|
Recording/Snapshot Abnormal
|
||
|
External Interface
|
||
|
Network Interface
|
1 RJ45 10M/100M self-adaptive Ethernet Interface
|
|
|
USB Interface
|
Rear panel: 2 x USB2.0
|
|
|
RS232
|
NA
|
|
|
RS485
|
NA
|
|
|
Alarm In
|
NA
|
|
|
Alarm Out
|
NA
|
|
|
PoE
|
||
|
Interface
|
8 RJ45 10M/100M self-adaptive Ethernet Interface
|
|
|
Max Power
|
Max 30W for single port
|
|
|
Max 75W in total
|
||
|
Supported Standard
|
IEEE 802.3at, IEEE 802.3af
|
|
|
General
|
||
|
Power Supply
|
52V DC
|
|
|
Power Consumption: ≤9 W (without HDD)
|
||
|
Working Environment
|
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
|
|
|
Dimensions (W×D×H)
|
270mm × 205mm × 46mm (10.6"×8.1"×1.8")
|
|
|
Weight (without HDD)
|
≤0.8 kg (1.76 lb)
|
|
