Shenzhen Moonkvision Industrial Corp.Ltd

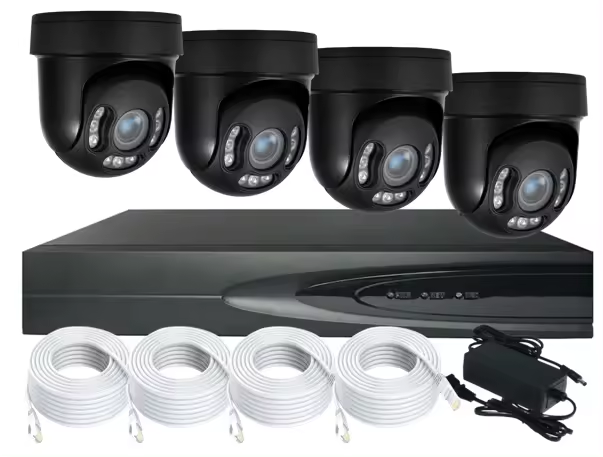

8CH NVR KIT Full Color Night Vision 4K POE NVR IP Security Camera System 4 Channel PTZ Network Kit With 2 Way Audio
8CH NVR KIT Full Color Night Vision 4K POE NVR IP Security Camera System 4 Channel PTZ Network Kit With 2 Way Audio
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|

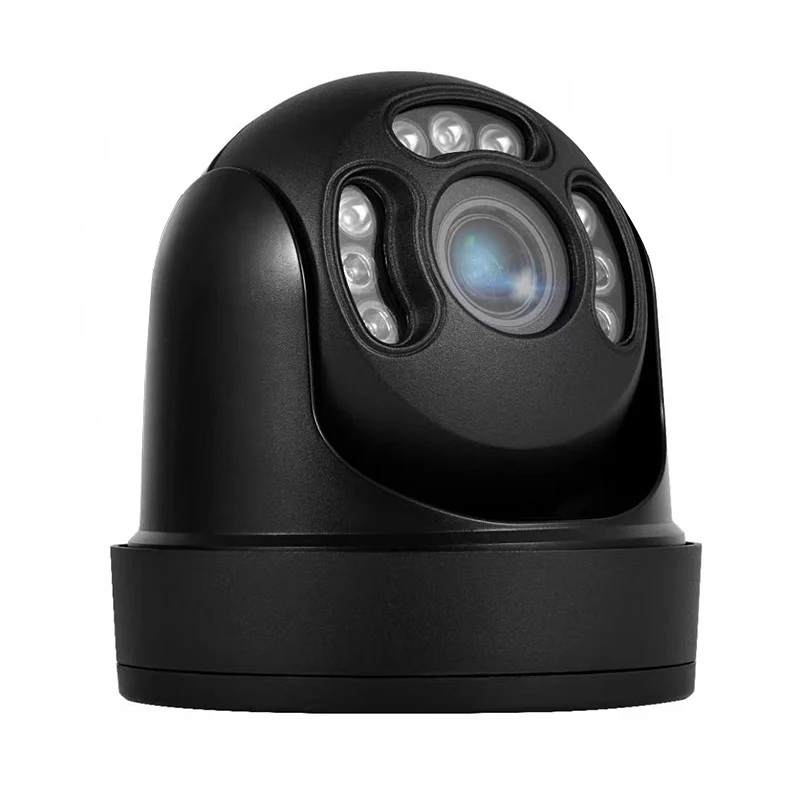

Camera Specification
|
|
|
Model
|
NVRKIT6939STVZ
|
|
IMAGE SENSOR
|
1/2.8" NOVA+Sony415
|
|
Video compression
|
H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC
|
|
MIN. ILLUMINATION
|
0.01Lux@F1.2(AGC ON), 0Lux IR on
|
|
Frame Rates
|
8MP:3840* 2160@20fps
|
|
VIDEO FRAME RATE
|
Main stream:2880×1620,2592×1520,2560×1440,2048×1520,2304×1296,1920×1080;
|
|
Audio Interface
|
1channel input,support mic or pickup input;1channel output, support headset or amplifier play
|
|
Audio code
|
G.711 CODEC standard, support dual voice talkback, audio and video synchronization
|
|
Network Interface
|
1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity;support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF
and so on network protocols |
|
IR LED
|
Nano-tech IR LED: 28µ x 4pcs, IR Range: 30M
|
|
FOCAL LENGTH
|
4X ZOOM Lens(2.8-12mm)
|
|
APERTURE
|
F1.4
|
|
TF
|
support (512G)
|
|
Network interface
|
Built in RJ45network interface support 10M/100M IP DATA
|
|
Smart Alarm
|
humanoid and vehicle detection/motion detection/ video loss/network cable disconnection/IP address conflict
|
|
Power Consumption
|
MAX 5W
|
|
Interface protocol
|
ONVIF Hikvision XM jovision personal protocol
|
|
Network protocol
|
TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP
|
|
INGRESS PROTECTION
|
IP66
|
|
P2P
|
Anfroid IOS
|
|
POWER SUPPLY
|
DC12V±10% OR POE
|
|

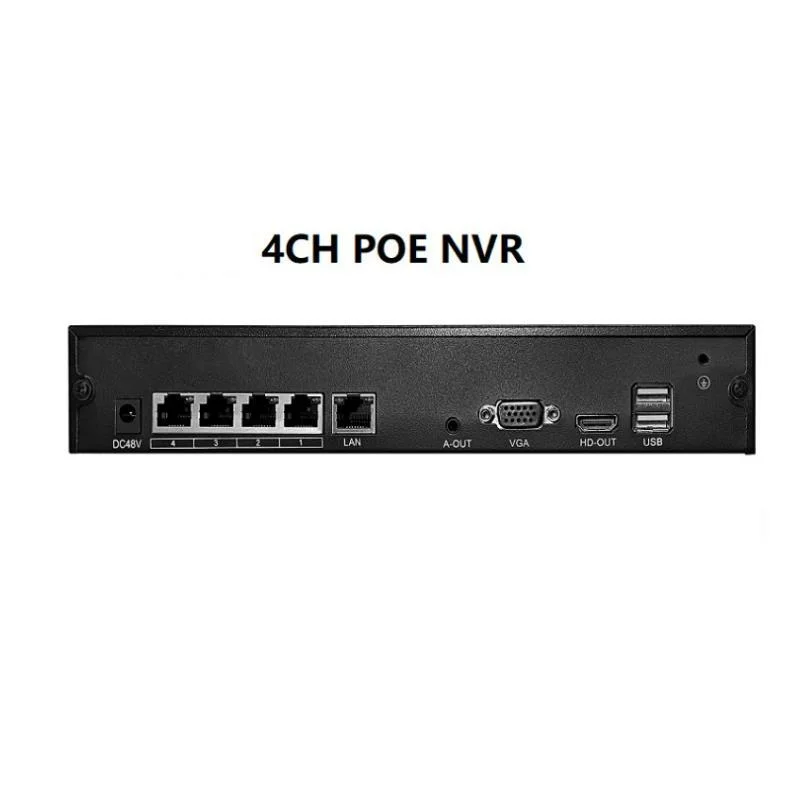

POE Specification
|
|
|
Model
|
NVRKIT6860SHP/NVRKIT6863SHP/NVRKIT6865SHP
|
|
System structure
|
Embedded LINUX design, pure hardware decoding, watchdog, hard disk storage, HDMI high-definition display, IP network video access;
|
|
Video input
|
High-definition IPC access, support dual-stream access for each IPC, support automatic search, automatic addition, automatic
recording, automatic preview, plug and play; access bandwidth 64Mbps; |
|
Video output
|
1 HDMI output, 1 VGA output; resolution: 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768;
|
|
Video Display
|
Support multi-picture splitting: 1/2/4/6/8/9/10/16 pictures real-time preview; Support Seetong client preview; Support phone APP
preview; |
|
Video decoding parameters
|
Support H.265+/H.265/H.264 decoding;
|
|
Video Playback
|
NVR synchronous playback 2 channels (2*8MP); Seetong client remote video playback supports up to 2 channels;
|
|
Preview
|
4/8/16 channels*8MP
|
|
Video resolution
|
Support 720P/960P/1080P/3MP/4MP/5MP/8MP;
|
|
Motion Detection
|
Depends on the cameras
|
|
User Management
|
Supports up to 38 users locally;
|
|
Video mode
|
Manual>Alarm>Motion Detection>Timing
|
|
Local playback
|
2 channels*8M/4 channels*4M/4, 8, 8 channels*1080P/8 channels*960P
|
|
Video Search
|
Time point search, calendar search, event search, channel search
|
|
Storage management
|
1 /1/2 SATA interface, each interface supports a hard disk with a maximum capacity of 14TB;
|
|
Support timing recording, motion detection linkage recording, alarm linkage recording, cross-border recording, area intrusion
recording, intelligent face recording, intelligent license plate recording, intelligent humanoid recording, intelligent vehicle recording |
|
|
Network backup, USB mobile hard disk, USB burning, SATA burning
|
|
|
Video output
|
1 VGA, 1 HDMI
|
|
Loop through output
|
none
|
|
Audio input
|
1
|
|
Audio output
|
1
|
|
Network Interface
|
4/8/16 POE network ports + 1 RJ45 WAN port
|
|
USB interface
|
2 USB ports
|
|
Hard disk interface
|
1/1/2 SATA interface (each supports up to 8T)
|
|
power supply
|
POE 48V
|
|
Power consumption
|
Less than 3W (without hard disk)
|
|
Operating temperature
|
0℃—+55℃
|
|
Working humidity
|
10%—90%
|
